Default A/C condensation drain clean out

OK. Another project I completed. My ac condensation drain that runs down under garage floor and out by the ac unit was pretty much plugged up. I first tried my garden hose attachment that I made up. But, the y-tee was too close to the top and was back flowing up towards the A coil drain box and wouldn’t build up enough pressure to blow out the drain line.

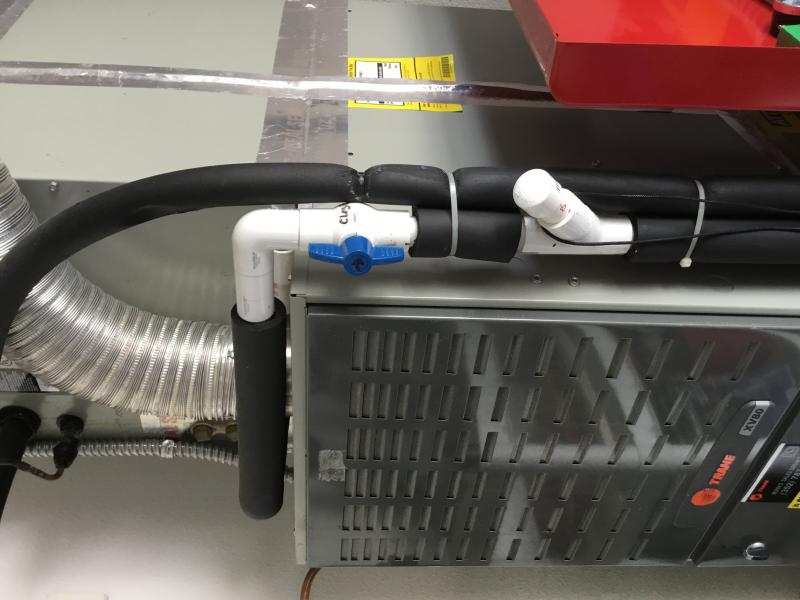

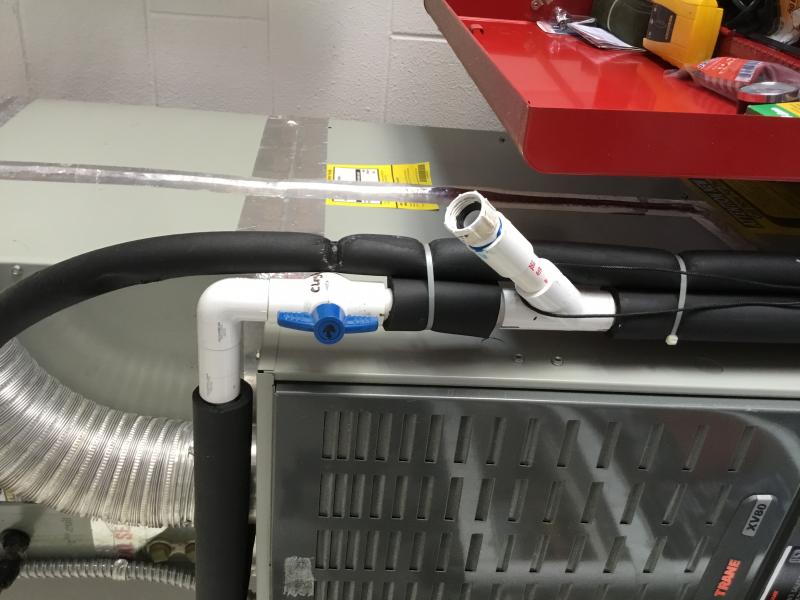

I cut out section of the drain, Installed shut off valve and the Y-Fitting below the cut off valve. Now when I hooked up the garden hose I got full 60 or PSI from city water pressure. This blew out all sorts of crud that built up over 13 years or so period since the house was built.

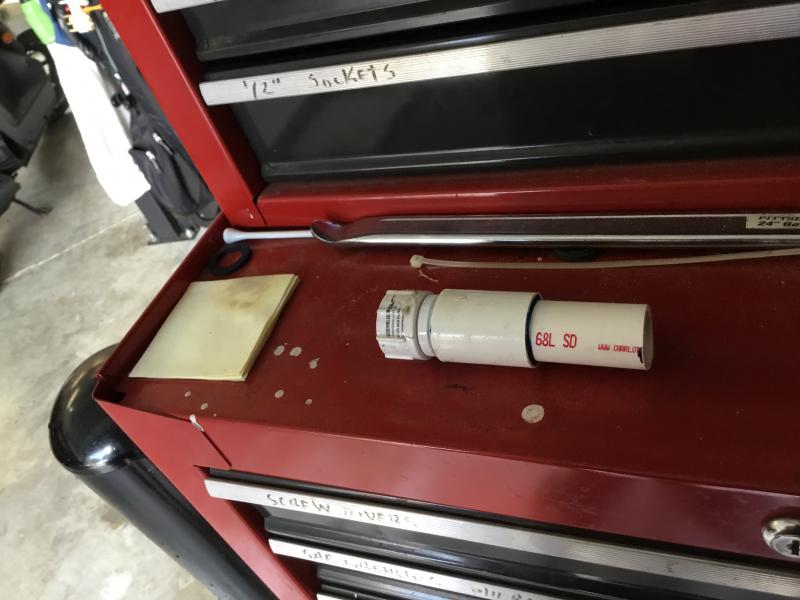

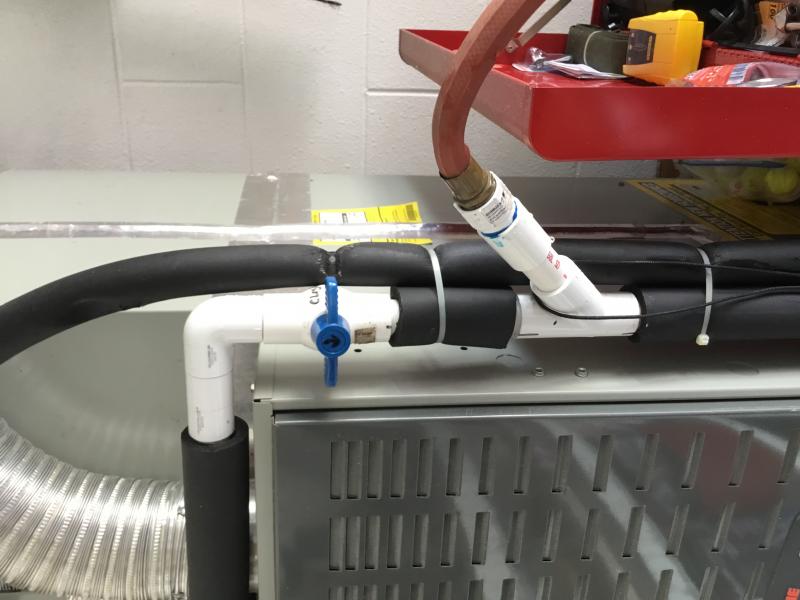

I simply turn the cut off vale to closed, remove the plug in the y-fitting, install the hose adapter, connect the water hose and turn it on. Go to ac unit where the drain located and watch flow blasting out. Go back turn the water off, open the cut off valve, remove hose and adapter, install the y-fitting plug. Works like champ!
Attached Thumbnails
5e863ee5-f90a-40e1-ad4c-7436d805f842-jpg   ad933e73-27dc-4829-8aa8-9b19a945c579-jpg   bfd3be83-8e6f-4634-b193-e7158203466b-jpg   f072e71e-d07c-432d-912c-827beee02671-jpg   1d21e590-7375-434b-998b-3c1278cbf53c-jpg

  #2
Old 09-21-2018, 12:59 PM
Joeg180 Joeg180 is offline
Senior Member
Join Date: Jun 2018
Location: Village of McClure
Posts: 158
Thanks: 0
Thanked 1 Time in 1 Post
Default

Nice!
  #3
Old 09-21-2018, 01:06 PM
Tom C's Avatar
Tom C Tom C is offline
Senior Member
Join Date: Dec 2017
Location: Pine Hills, recently arrived from Alaska!
Posts: 300
Thanks: 7
Thanked 39 Times in 20 Posts
Default

Very nice, simple, inexpensive solution that (almost) everyone can do on their own. Those that are not able to do it themselves, can ask other handy-people to do for then at low cost and quickly installed.

Congrats! GREAT POSTING!
  #4
Old 09-21-2018, 02:38 PM
theorem painter's Avatar
theorem painter theorem painter is offline
Senior Member
Join Date: Jan 2013
Location: Tall Trees
Posts: 429
Thanks: 0
Thanked 3 Times in 3 Posts
Default

Dumb question here! How do you know if your ac condensation drain is plugged?
__________________
Sally
******************************************
Great minds discuss ideas.
Average minds discuss events.
Small minds discuss people.

Eleanor Roosevelt
  #5
Old 09-21-2018, 03:50 PM
Ecuadog's Avatar
Ecuadog Ecuadog is offline
Gold member
Join Date: Jul 2011
Location: Podunk
Posts: 1,324
Thanks: 0
Thanked 57 Times in 27 Posts
Default

It's a thing of beauty.
__________________
"It is better to remain silent at the risk of being thought a fool, than to talk and remove all doubt of it."
  #6
Old 09-21-2018, 03:50 PM
rjm1cc's Avatar
rjm1cc rjm1cc is offline
Platinum member
Join Date: Apr 2010
Posts: 1,871
Thanks: 16
Thanked 71 Times in 35 Posts
Default

Very good solution and I probably never would have though of it in a million years.
I do use vinegar once a month and have not had the problem.

It would make sence to me that the builder includes your solution in all homes.
  #7
Old 09-21-2018, 03:52 PM
photo1902 photo1902 is offline
Platinum member
Join Date: Nov 2014
Posts: 1,973
Thanks: 380
Thanked 377 Times in 166 Posts
Default

Quote:
Originally Posted by rjm1cc View Post
Very good solution and I probably never would have though of it in a million years.
I do use vinegar once a month and have not had the problem.

It would make sence to me that the builder includes your solution in all homes.
Exactly. Twice a year cleaning with vinegar avoids any problems
  #8
Old 09-21-2018, 04:09 PM
Topspinmo's Avatar
Topspinmo Topspinmo is offline
Sage
Join Date: Dec 2012
Location: Oregon Mo. St Joesph mo, ft worth tx, Omaha neb., upper heyford UK, Clovis NM, OKC.
Posts: 5,386
Thanks: 1,096
Thanked 576 Times in 313 Posts
Default

Sally, no it not. Majority don’t know how the system works.

If you go outside usually beside the ac unit there will be PVC white pipe sticking up usually with curved portion end. On hot muggy day condensation from the A COIL inside you a/c heat unit in the garage has to drain condensation off. It goes from the bottom of the catch pan below the A coil out to white PVC drain pipes. not away’s The S curve can be seen (mine is underground, not visible) The S curve keeps critters and smell from backing up into you ac unit. This usually where crud (dust and rust) forms or at the up elbow outside and narrows the drain capability (the slow but steady drip drip at the outside by the unit. Over years it can buidup enough to back up into the ac/heat unit which you will see moisture where you never seen it before.

Can put chemical (usually white vinegar) down the access y-fitting as shown in pictures to minimize the buildup deposits (crud as described). But, nothing good as pressure flush) Most familiar with the system operation will flush it out every few years or if older house with unknown condition. Basically to keep the drain system draining properly.

Last edited by Topspinmo; 09-21-2018 at 04:18 PM.
  #9
Old 09-21-2018, 04:16 PM
Topspinmo's Avatar
Topspinmo Topspinmo is offline
Sage
Join Date: Dec 2012
Location: Oregon Mo. St Joesph mo, ft worth tx, Omaha neb., upper heyford UK, Clovis NM, OKC.
Posts: 5,386
Thanks: 1,096
Thanked 576 Times in 313 Posts
Default

Quote:
Originally Posted by photo1902 View Post
Exactly. Twice a year cleaning with vinegar avoids any problems
IMO Pouring vinegar down may reduce growth, but on older units over time dust and rust builds up from years migrating down from the A-coil. Majority don’t live in house 10 to 15 years plus long enough to experience problem. It’s usually the 2nd or 3rd owners.
  #10
Old 09-21-2018, 04:21 PM
photo1902 photo1902 is offline
Platinum member
Join Date: Nov 2014
Posts: 1,973
Thanks: 380
Thanked 377 Times in 166 Posts
Default

Quote:
Originally Posted by Topspinmo View Post
IMO Pouring vinegar down may reduce growth, but on older units over time dust and rust builds up from years migrating down from the A-coil. Majority don’t live in house 10 to 15 years plus long enough to experience problem. It’s usually the 2nd or 3rd owners.
Definitely a valid concern when you don’t know what you’re inheriting.
  #11
Old 09-21-2018, 04:22 PM
Tom C's Avatar
Tom C Tom C is offline
Senior Member
Join Date: Dec 2017
Location: Pine Hills, recently arrived from Alaska!
Posts: 300
Thanks: 7
Thanked 39 Times in 20 Posts
Default

Just be sure the water hose adapter push-on fitting does not back out of the Y when the water pressure is applied .... it could end up chasing you!
  #12
Old 09-21-2018, 04:46 PM
Topspinmo's Avatar
Topspinmo Topspinmo is offline
Sage
Join Date: Dec 2012
Location: Oregon Mo. St Joesph mo, ft worth tx, Omaha neb., upper heyford UK, Clovis NM, OKC.
Posts: 5,386
Thanks: 1,096
Thanked 576 Times in 313 Posts
Default

Quote:
Originally Posted by Tom C View Post
Just be sure the water hose adapter push-on fitting does not back out of the Y when the water pressure is applied .... it could end up chasing you!
Fits pretty tight, I make sure I push it down all the way! so far no problems I also have gauge so I know what water pressure is. In my area runs 55 to 60 depending on time of day.
  #13
Old 09-21-2018, 07:30 PM
kcrazorbackfan's Avatar
kcrazorbackfan kcrazorbackfan is offline
Sage
Join Date: Oct 2014
Location: The Villages, FL
Posts: 2,728
Thanks: 85
Thanked 397 Times in 126 Posts
Default

Quote:
Originally Posted by theorem painter View Post
Dumb question here! How do you know if your ac condensation drain is plugged?
Your drain should have a shut off float that shuts off the A/C if the drain becomes clogged; ours happened while gone for a few days. Poured hot water and vinegar into the drain, let it sit for about 5 minutes then I took my wet/dry shop vac and sucked all the gunk out from the outside end of the drain line.
__________________
For each of us, life is a journey. Where has your life taken you? Your entire life leads to the next step, the chance to define yourself by where you're headed, instead of where you stand. Today is the day you introduce yourself to your destiny.
  #14
Old 09-21-2018, 08:53 PM
NoMoSno NoMoSno is online now
Veteran member
Join Date: Mar 2013
Posts: 673
Thanks: 7
Thanked 11 Times in 8 Posts
Default

I just use the shop-vac method, like the service people do.
  #15
Old 09-21-2018, 09:53 PM
Topspinmo's Avatar
Topspinmo Topspinmo is offline
Sage
Join Date: Dec 2012
Location: Oregon Mo. St Joesph mo, ft worth tx, Omaha neb., upper heyford UK, Clovis NM, OKC.
Posts: 5,386
Thanks: 1,096
Thanked 576 Times in 313 Posts
Default

Evidently you live in recently new home. On homes that 10 years or more that haven’t been maintained I doubt the shop vac going pull stuff stuck to walls of the pvc pipe? My method takes about 4 mins.
