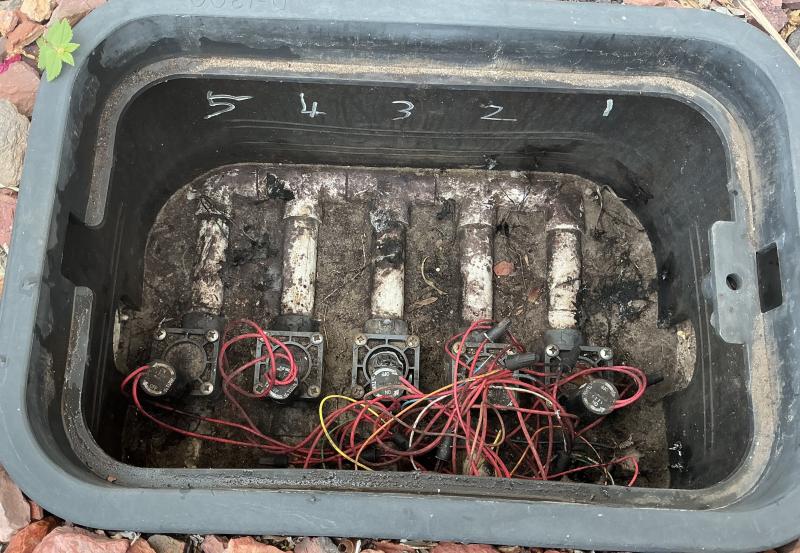

Ok, zone two didn’t come on this morning? I opened the valve distribution box and found blue wire not connected. What rats nest of mumbo jumbo wiring.

Going to attempt to rewire the mess with diagram I made up.


Got 12v mulit-terminal bus bar on order to tie all commons (white) wires together and some water proof connectors.

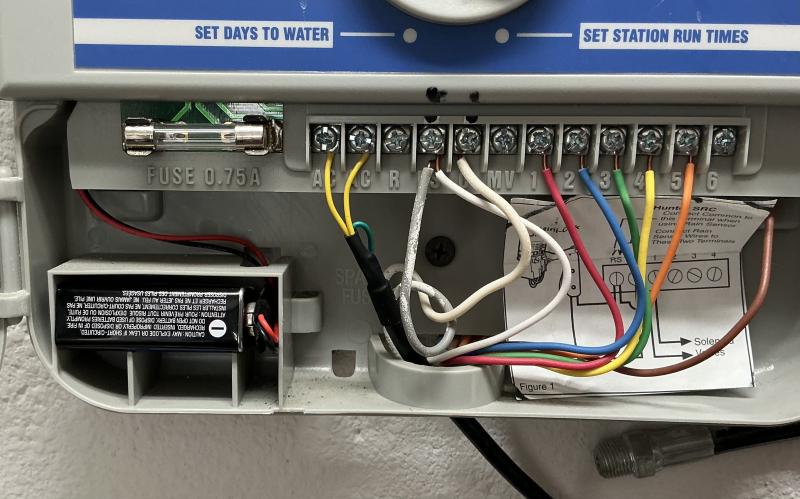

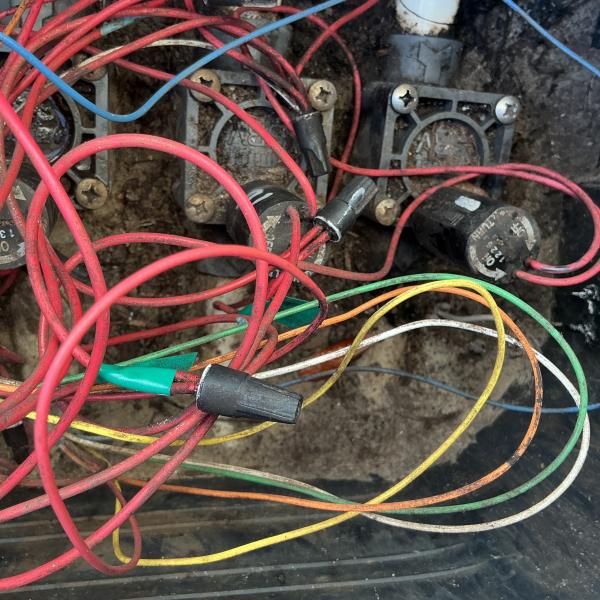

Here some pictures of mess and my final wiring diagram. I will mount the bus bar to side of the cover box.

I’ll report back if my re-wire job works?

[Topspinmo]

Ok, my rewire job done and zones come on in order. other than bending down on my knees went pretty fast, I pay for that for awhile…

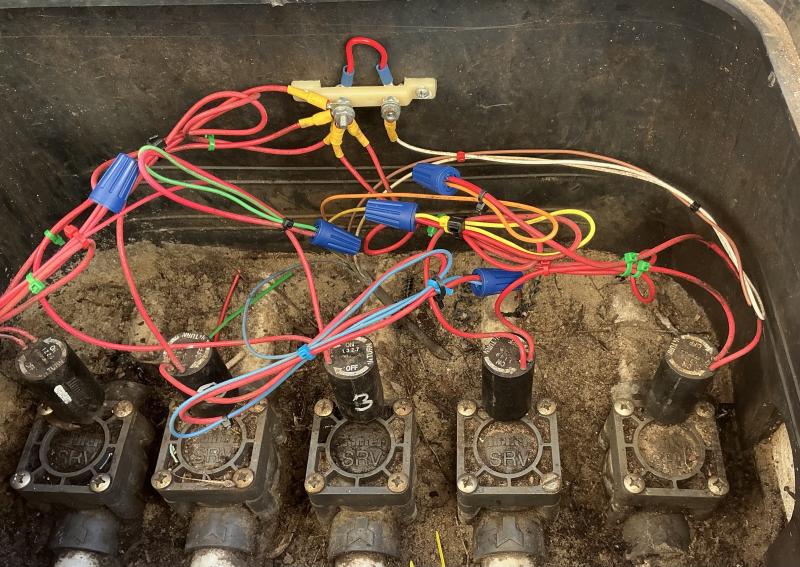

Made my own bus block bar for commons.

[Teed_Off]

Nice looking job.
