Does anyone know what this is?

Closed Thread
Thread Tools
  #1
Old 04-03-2021, 05:25 AM
Juliewaters Juliewaters is offline
Member
Join Date: Feb 2021
Posts: 46
Thanks: 73
Thanked 11 Times in 8 Posts
Default Does anyone know what this is?

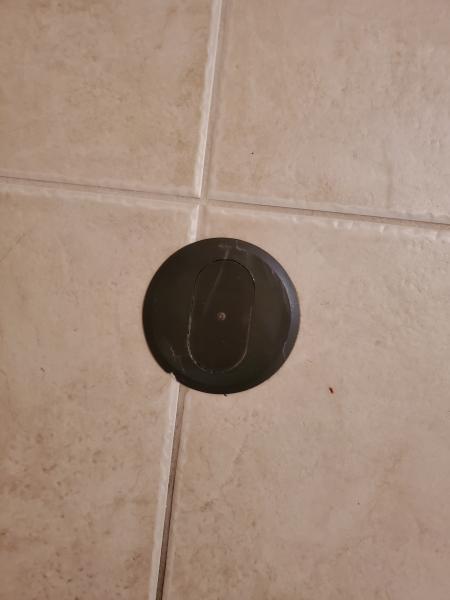

Hello. We just moved into the villages and noticed this round plate on the floor. I attached a pic. Does anyone know what this is for?
Thanks
Julie
Attached Thumbnails
The Villages Florida: Click image for larger version

Name:	16174454802314712772226851754012.jpg
Views:	10315
Size:	20.3 KB
ID:	88930
  #2
Old 04-03-2021, 05:30 AM
Ragman Ragman is offline
Senior Member
Join Date: Nov 2011
Location: Buttonwood
Posts: 331
Thanks: 0
Thanked 19 Times in 7 Posts
Default

Electrical outlet; there should be a wall switch (probably with a red dot) that controls it.
  #3
Old 04-03-2021, 05:31 AM
jswirs jswirs is offline
Senior Member
Join Date: Nov 2019
Location: Village of Santiago
Posts: 476
Thanks: 330
Thanked 794 Times in 274 Posts
Default

Quote:
Originally Posted by Juliewaters View Post
Hello. We just moved into the villages and noticed this round plate on the floor. I attached a pic. Does anyone know what this is for?
Thanks
Julie
electrical outlet, or junction box? If that has a screw I would remove it to access whatever is inside.
  #4
Old 04-03-2021, 05:42 AM
Juliewaters Juliewaters is offline
Member
Join Date: Feb 2021
Posts: 46
Thanks: 73
Thanked 11 Times in 8 Posts
Default

Thanks so much
  #5
Old 04-03-2021, 06:21 AM
Tmarkwald Tmarkwald is offline
Veteran member
Join Date: Jan 2021
Location: Dhahran, Duesseldorf, Hemel Hempstead, Phoenix, Grand Rapids, Washington DC, and now TV
Posts: 851
Thanks: 142
Thanked 853 Times in 364 Posts
Default

I have the identical floor outlet as well.
  #6
Old 04-03-2021, 08:43 AM
Jima64 Jima64 is offline
Platinum member
Join Date: Feb 2015
Posts: 1,546
Thanks: 161
Thanked 217 Times in 81 Posts
Default

Floor outlet so you don't have to run an extension cord to have a lamp,near a piece of furniture.
  #7
Old 04-03-2021, 08:55 AM
tophcfa's Avatar
tophcfa tophcfa is offline
Sage
Join Date: Feb 2015
Location: Wherever I happen to be.
Posts: 7,438
Thanks: 3,489
Thanked 10,854 Times in 3,449 Posts
Default

Hope it’s on a GFI, a water spill on the floor would not be good.
  #8
Old 04-03-2021, 08:55 AM
TommyT TommyT is offline
Veteran member
Join Date: Jul 2010
Location: The Villages
Posts: 541
Thanks: 818
Thanked 255 Times in 108 Posts
Default

As was already stated, "Floor Electrical Outlet" but there is more to the story. One side of the outlet is always "hot" while the other side is controlled by a switch. In our Lantana, we had a switch by the back sliders and one by the front door.
__________________
Thanks,
Tommy T
The Villages
  #9
Old 04-03-2021, 05:19 PM
JoelJohnson JoelJohnson is offline
Veteran member
Join Date: Jun 2012
Location: Lady Lake, FL
Posts: 938
Thanks: 719
Thanked 472 Times in 225 Posts
Default

Quote:
Originally Posted by TommyT View Post
As was already stated, "Floor Electrical Outlet" but there is more to the story. One side of the outlet is always "hot" while the other side is controlled by a switch. In our Lantana, we had a switch by the back sliders and one by the front door.
Not sure you said it right, the "hot" side should be controlled by the switch, otherwise a short would make the whole box hot.
  #10
Old 04-03-2021, 05:24 PM
Kenswing's Avatar
Kenswing Kenswing is offline
Sage
Join Date: Jan 2016
Location: We're Here!
Posts: 7,873
Thanks: 1,529
Thanked 6,022 Times in 2,429 Posts
Default

Quote:
Originally Posted by JoelJohnson View Post
Not sure you said it right, the "hot" side should be controlled by the switch, otherwise a short would make the whole box hot.
Our house is currently under construction. Those floor outlets are indeed 1/2 switched. One side hot, one side switched. We actually had them place two floor outlets in our living room. We'll use the hot sides for our motorized recliners and the switched side for lamps.
__________________
Birthdays Are Good For You. Statistics Show the More That You Have The Longer You Will Live..

We've Got Plenty Of Youth.. What We Need Is a Fountain Of SMART!
  #11
Old 04-03-2021, 07:08 PM
TommyT TommyT is offline
Veteran member
Join Date: Jul 2010
Location: The Villages
Posts: 541
Thanks: 818
Thanked 255 Times in 108 Posts
Default Nope !!!

Quote:
Originally Posted by JoelJohnson View Post
Not sure you said it right, the "hot" side should be controlled by the switch, otherwise a short would make the whole box hot.
NOPE !!!! One can make the outlet hot only on one side by pulling the dual contacts from each side. This makes the outlet have two circuit feeds.
__________________
Thanks,
Tommy T
The Villages
  #12
Old 04-04-2021, 05:20 AM
thevillages2013 thevillages2013 is offline
Platinum member
Join Date: Apr 2014
Posts: 1,689
Thanks: 491
Thanked 1,535 Times in 636 Posts
Default

The advice you have received already is good but just be careful when you take that plate off . Don’t assume there will be a correctly wired outlet under there. Proceed with caution
  #13
Old 04-04-2021, 05:25 AM
davephan davephan is offline
Senior Member
Join Date: Dec 2019
Location: Florida Suncoast
Posts: 202
Thanks: 0
Thanked 123 Times in 72 Posts
Default

If the outlet doesn’t have a wall switch, or any other outlet, you can add a Luton Castra wireless outlet switch, and then you can easily add a wireless switch to the wall. You can also switch the lamps on and off with a remote control, or your cellphone.

I’m changing out about 20 switches in my home. Most of the switches are incandescent only dimmers. I’m changing them out with Lutron dimmers that are incandescent / fluorescent / LED dimmers, then changing out dozens of incandescent bulbs with LED bulbs. Those lights can switched from your cellphone or automated.

I also changed out four mechanical wall timers with Lutron switches that can be programmed with your cellphone to turn on and off outside lights at sunset and sunrise.

I also added motion detectors to the lights in closets, the laundry room, and bathrooms, and countdown timers to the bathroom fans. The motion detectors are built into the switches, or are separate wireless motion detectors that can be “paired” to the switches. Then the lights turn on and off automatically. The fans shut off automatically.

You can even program the lights to make it look like you are home from the outside of your home at night with the automation. There’s a lot of things you can do to improve your electrical system in an older home.

Last edited by davephan; 04-04-2021 at 05:32 AM.
  #14
Old 04-04-2021, 05:28 AM
GOLFER54's Avatar
GOLFER54 GOLFER54 is offline
Senior Member
Join Date: Aug 2009
Location: The Villages, FL
Posts: 359
Thanks: 660
Thanked 503 Times in 188 Posts
Default

I think it is a CCTV
  #15
Old 04-04-2021, 06:51 AM
NoMo50 NoMo50 is offline
Veteran member
Join Date: Nov 2020
Posts: 830
Thanks: 27
Thanked 1,215 Times in 495 Posts
Default

If yours is a new home, your builder should have explained that to you during your walk-through. You may also find several switches in the house that have a red screw on the switch plate. The red screw indicates that switch controls an electrical outlet. Find the outlet in the same room with a red screw on its cover, and the switch will control half of that receptacle...generally the top one.
