Cool Nest Thermostat wiring

Anyone wire up one of these. Replacing Villages 6 wire Honey well unit 1 zone
  #2
Old 07-02-2018, 10:46 AM
rjm1cc's Avatar
rjm1cc rjm1cc is offline
Soaring Eagle member
Join Date: Apr 2010
Posts: 2,019
Thanks: 79
Thanked 227 Times in 90 Posts
Default

No, but you can look up the manuals for both thermostats on the internet and that should help you identify what each color of wire means. Also make sure the voltage requirements are the same.
  #3
Old 07-02-2018, 12:00 PM
retiredguy123 retiredguy123 is offline
Sage
Join Date: Feb 2016
Posts: 6,088
Thanks: 592
Thanked 4,368 Times in 1,630 Posts
Default

Before you disconnect any wires from the old thermostat, make sure you take a photo of the existing wires and where they are connected.
  #4
Old 07-02-2018, 12:43 PM
tomwed tomwed is offline
Sage
Join Date: Aug 2012
Posts: 9,980
Thanks: 0
Thanked 157 Times in 152 Posts
Default

If you have plenty of lead wire you could cut the wire with leaving an inch of insulation on. Did you look for someone on Youtube for a demonstration?
  #5
Old 07-02-2018, 12:45 PM
Wiotte Wiotte is offline
Sage
Join Date: May 2017
Location: TV
Posts: 5,036
Thanks: 0
Thanked 566 Times in 566 Posts
Default

Kill the power to the air handler before any work is done or you’ll blow the control transformer ! 40VA transformers don’t have resettable overloads.


Sent from my iPhone using Tapatalk
  #6
Old 07-02-2018, 12:49 PM
LyndaS's Avatar
LyndaS LyndaS is offline
Member
Join Date: Nov 2012
Location: Village of Chatham
Posts: 50
Thanks: 0
Thanked 0 Times in 0 Posts
Default Nest thermostat

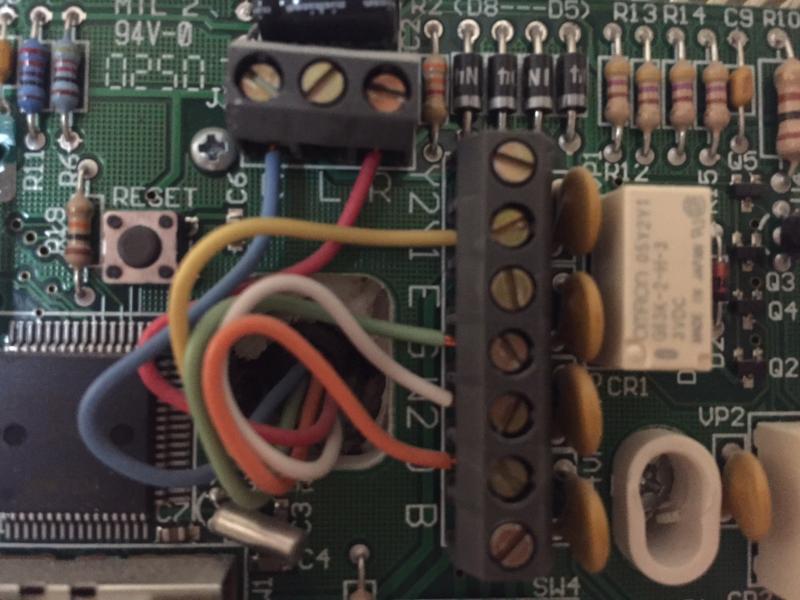

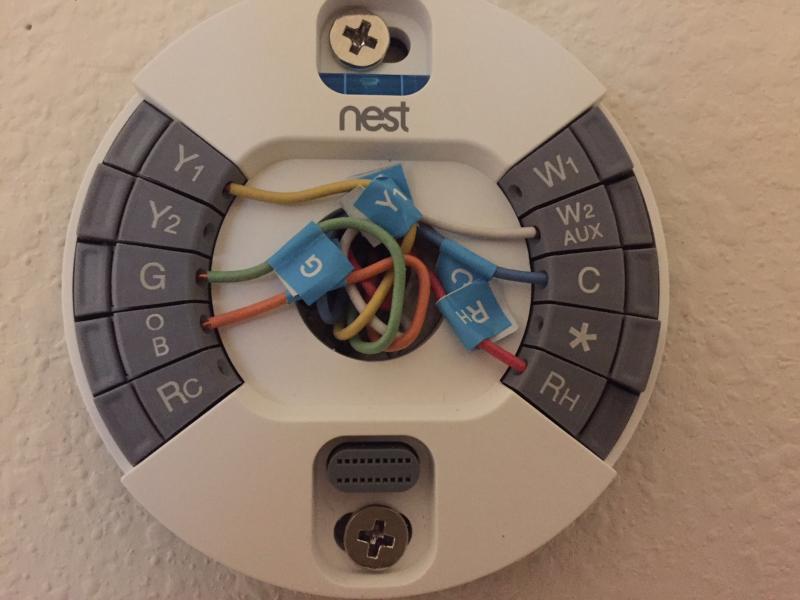

I installed a nest thermostat about a year and a half ago. I poured over all the videos and read and re-read the instructions. I originally had a Robert Shaw thermostat. Here is a pic of the wiring of the original thermostat and then the Nest that I replaced it with.
Attached Thumbnails
The Villages Florida: Click image for larger version

Name:	IMG_3215.jpg
Views:	251
Size:	64.9 KB
ID:	75546   The Villages Florida: Click image for larger version

Name:	IMG_3218.jpg
Views:	250
Size:	45.6 KB
ID:	75547
  #7
Old 07-02-2018, 12:55 PM
Wiotte Wiotte is offline
Sage
Join Date: May 2017
Location: TV
Posts: 5,036
Thanks: 0
Thanked 566 Times in 566 Posts
Default Nest Thermostat wiring

Quote:
Originally Posted by LyndaS View Post
I installed a nest thermostat about a year and a half ago. I poured over all the videos and read and re-read the instructions. I originally had a Robert Shaw thermostat. Here is a pic of the wiring of the original thermostat and then the Nest that I replaced it with.


It can get tricky here with the O/B terminal. This will energize or de energize your reversing valve if you have a heat pump. You need to know what the sequence is and hope the thermostat logic can be switched to accommodate your system.
I also see no provision for emergency heat on the Nest.


Sent from my iPhone using Tapatalk
  #8
Old 07-02-2018, 02:11 PM
marksaint marksaint is offline
Junior Member
Join Date: May 2009
Location: Central Massachusetts
Posts: 19
Thanks: 0
Thanked 2 Times in 2 Posts
Default

Thanks all, got the info needed. Manual not that clear when heat pumps involved. most wires self explanatory but I've seen three different set ups for 6 wire heat pumps... supposedly unit will tell you if everything is wired correctly.
  #9
Old 07-02-2018, 04:07 PM
JoMar JoMar is offline
Sage
Join Date: Apr 2014
Posts: 4,290
Thanks: 10
Thanked 1,694 Times in 636 Posts
Default

We had Munns doe the installation....they didn't sell it but they agreed to install it.....that was 2 years ago, not sure if they still do that.
__________________
No one believes the truth when the lie is more interesting

Berks County Pennsylvania
  #10
Old 07-02-2018, 04:11 PM
rjm1cc's Avatar
rjm1cc rjm1cc is offline
Soaring Eagle member
Join Date: Apr 2010
Posts: 2,019
Thanks: 79
Thanked 227 Times in 90 Posts
Default

Quote:
Originally Posted by retiredguy123 View Post
Before you disconnect any wires from the old thermostat, make sure you take a photo of the existing wires and where they are connected.
Very good suggestion.
